FEATURES

Triaxial, digital gyroscope, ±450° ec dynamic range /s
±0.05°orthogonal alignment error,4.0° r in-run bias stability ,0.26°/Öhr angular random walk, 0.01% nonlinearity /h
Triaxial, digital accelerometer, ±18 g
Triaxial, delta angle and delta velocity outputs
Triaxial, digital magnetometer, ±2.5 gauss
Digital pressure sensor, 300 mbar to 1100 mbar
Factory-calibrated sensitivity, bias, and axial alignment
Operating and calibration temperature range: -45° to +85° C C
SPI-compatible serial interface
Programmable operation and control
4 FIR filter banks, 120 configurable taps
Digital input/output: data-ready alarm indicator, optional external sample clock up to 2.4 kHz
Alarms for condition monitoring
Single-supply operation: 3.0 V to 3.6 V
10000 g shock survivability


GENERAL DESCRIPTION

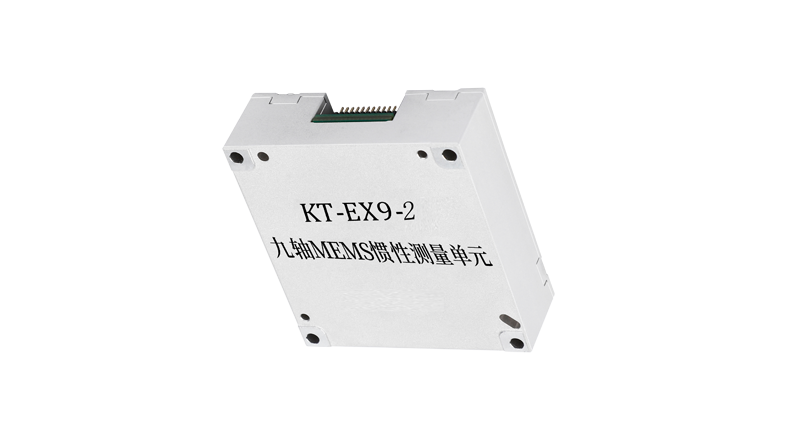

The KT-EX9-2 device is a complete inertial system that includes a triaxis gyroscope, a triaxis accelerometer, triaxis
magnetometer, and pressure sensor. Each inertial sensor in the KT-EX9-2 combines industry-leading technology with signal
conditioning that optimizes dynamic performance. The factory calibration characterizes each sensor for sensitivity, bias,
alignment, and linear acceleration (gyroscope bias). As a result, each sensor has its own dynamic compensation formulas that provide accurate sensor measurements. The KT-EX9-2 adopts a technical solution of internal shock absorption design in a closed chamber, and the inertial sensors are packaged in a vacuum ceramic shell. These measures greatly improve the product's noise acoustic resistance.
The KT-EX9-2 provides a simple, cost-effective method for integrating accurate, multiaxis inertial sensing into industrial systems, especially when compared with the complexity and investment associated with discrete designs. All necessary motion testing and calibration are part of the production process at the factory, greatly reducing system integration time. The KT-EX9-2 is packaged in a module that is approximately 47 mm × 44 mm × 14 mm and includes a standard connector interface.


APPLICATIONS


Platform stabilization and control
Navigation
Personnel tracking
Instrumentation
Robotics
