FEATURES

Triaxial, digital gyroscope, ±450°/sec dynamic range
±0.05° orthogonal alignment error,0.3°/hr in-run bias stability ,0.15°/Öhr angular random walk, 0.02% nonlinearity,
1°/h bias repeatability, 20°/h bias error over temperature
Triaxial, digital accelerometer, ±20 g and up to ±40 g (customized)
Triaxial, delta angle and delta velocity outputs
Factory-calibrated sensitivity, bias, and axial alignment
Operating and calibration temperature range: -45°C to +85°C
SPI-compatible serial interface
Programmable operation and control
4 FIR filter banks, 120 configurable taps
Digital input/output: data-ready alarm indicator, optional external sample clock up to 3.2 kHz
Single-supply operation: 3.0 V to 3.6 V
1500 g shock (operating), 10000 g shock (survival)


GENERAL DESCRIPTION

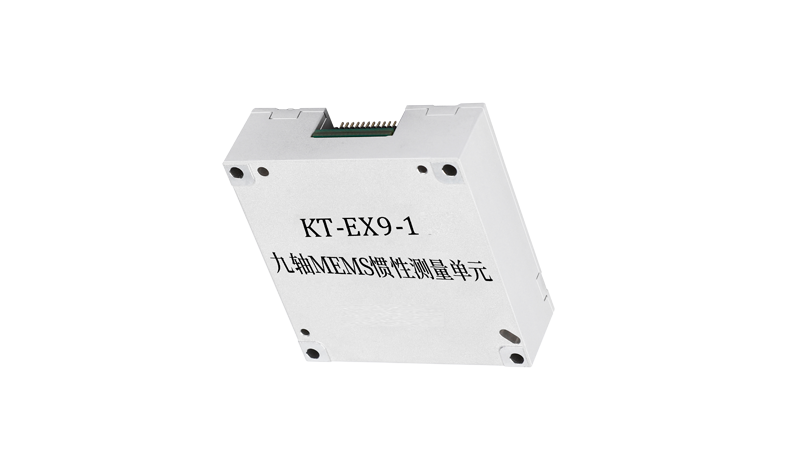

The KT-EX9-1 device is a complete inertial system that includes a triaxis gyroscope, a triaxis accelerometer. Each inertial
sensor in the KT-EX9-1 combines industry-leading technology with signal conditioning that optimizes dynamic performance.
The factory calibration characterizes each sensor for sensitivity, bias, alignment, and linear acceleration (gyroscope bias).
As a result, each sensor has its own dynamic compensation formulas that provide accurate sensor measurements. The inertial sensors are packaged in a vacuum ceramic shell. These measures greatly improve the product's noise acoustic resistance.
The KT-EX9-1 provides a simple, cost-effective method for integrating accurate, multiaxis inertial sensing into industrial systems, especially when compared with the complexity and investment associated with discrete designs. All necessary motion testing and calibration are part of the production process at the factory, greatly reducing system integration time. The KT-EX9-1 is packaged in a module that is approximately 47 mm × 44 mm × 14 mm and includes a standard connector interface.


APPLICATIONS


Platform stabilization and control
Navigation
Personnel tracking
Instrumentation
Robotics
