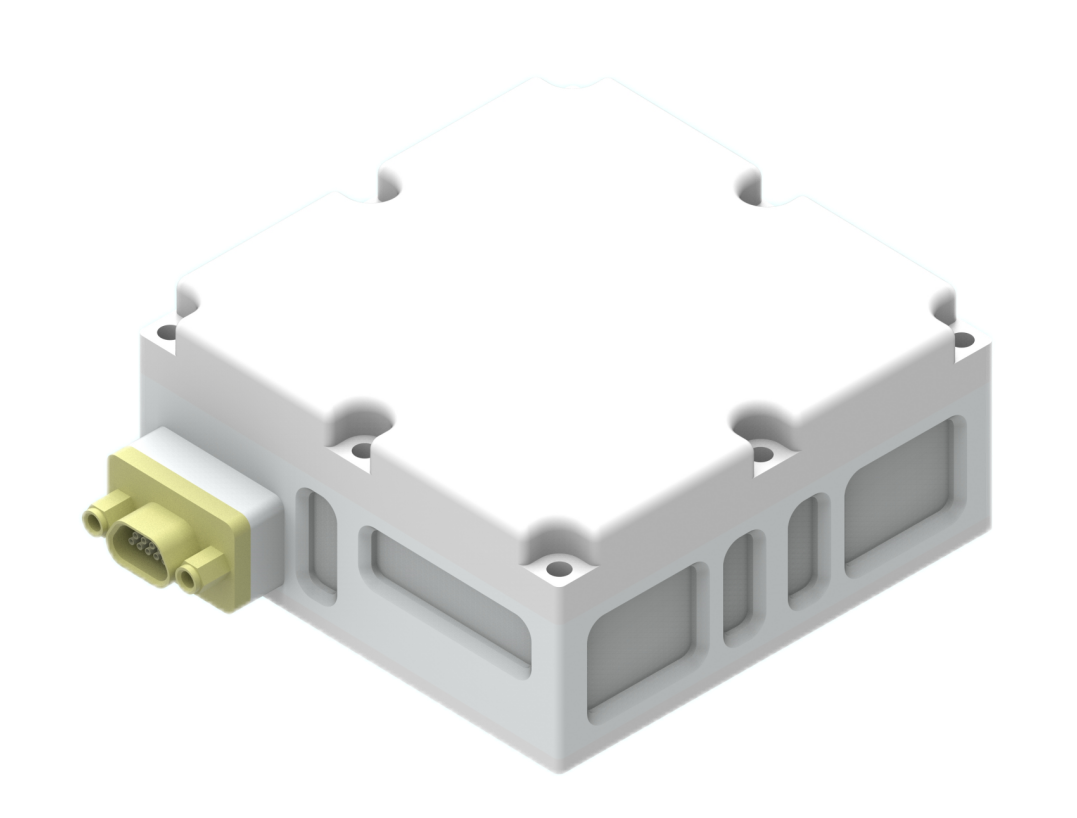

KT-65FA anti-jamming GNSS receiver(2024)

KT-65FA integrated anti-jamming antenna satellite receiving unit can receive GPS-L1 at the same time1+BDS-B1perhaps BDS-B1+GLONASS-L1Satellite navigation signal can realize single system and joint positioning navigation; can realize GPS-L1+BDS-B1perhaps BDS-B1Anti-interference function of the signal of the + GLONASS. The anti-interference antenna integrates anti-interference RF chip, medium frequency filter, four-channel ADC, anti-interference digital processing chip, DAC, upconversion mixer, radio frequency converter, RF selection switch and switch, MCU and other components, supporting GPS-L1+BDS-B1perhaps BDS-B1+GLONASS-L1Frequency point four-array element broadband anti-interference function.
The main functions of the anti-interference antenna are as follows:
A) BDS-B1,GPS-L1And GLONASS-L1Satellite signal;
B) Up to three incoming GPS-L1 can be inhibited1+BDS-B1perhaps BDS-B1+GLONASS-L1Frequency band harmonic, sweep, pulse, white noise, frequency modulation, amplitude modulation, phase modulation and other broadband, narrowband and other types of interference;
C) Can receive external input control instructions, with controlled direct through function;
D) Direct power access function;

Table 1 :Anti-interference antenna pin definition

order number	name	description
1	VCCIN	18～36VDC supply electricity
2	VCCIN	18～36VDC supply electricity
3	GND	GND
4	GND	GND
5	422Rx+	422Signal Receiver +
6	422Rx-	422Signal Receiver-
7	422-TX+	422Signal Send +
8	422-TX-	422Signal Send-
9	PPS output	TTL,+5V

Technical index of anti-interference antenna

project	metric	remarks
receive frequency	BDS B1/GPS L1/GLONASS L1	1561±2MHz1575±2MHz1602+0.5625*K(MHz)
Anti-interference frequency point	GPS-L1,BDS-B1perhaps BDSB1,GLONASS L1	either-or
capacity of resisting disturbance	Single interference with oneself105D. dB., double interference95D. dB., three interference85dB
antenna gain	elevation90linear measure:≥3dB
cold boot	≤40s
positioning mode	B1L1Dual mode joint positioning	Support for single BDS, GPS, and GLONASS positioning
Built-in receiver	UBlox：MAX-M10S	The receiver specifications are detailed on the UBlox website
Location accuracy (1σ）	≤10m
rate accuracy (1σ）	≤0.2M/s (Horizontal),0.3m/s(altitude)
maximum speed	≤500m/s
maximal acceleration	≤4g
jerk	≤10g/s
Output protocol	NMEA4.1
Data update rate	1、2、5Hz,10Hz can be configured
Data update rate	115200
input voltage	9～36V
power dissipation	≤7W
Antenna weight	≤160g
environmental suitability	working temperature:-40℃～60℃ storage temperature:-55℃～65℃

DISCLAIMER: Specifications are subject to change without notice. kaituo reserves the right to make changes to any product or technology herein to improve reliability, function or design.
