PIEZOELECTRIC ACCELEROMETER CHARGE PATTERN PE-6101PH



High temperature PE accelerometer Model 6101PH

Description

The Model 6101PH is a wide temperature range(300℃) piezoelectric accelerometer designed to measure vibration in high temperature applications.



•Miniature Size

•Adhesive or stud mounting

•Hermetic seal

•Annular shear mode

•Wide frequency response

Application

•Vibration monitoring

•Shock testing

•Road testing

•Modal analysis

•Aircraft testing

Single axial PE accelerometer



1.Sensitivity(pC/g):5

2.Frequency Response(Hz,±3dB):0.5-15000

3.shock limit(±g):5000

4.Operating Temp(℃):-70-300

5.Weight(gram):7

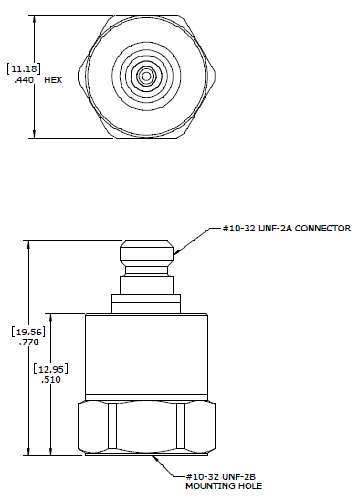

6.Dimensions(mm):11×11×20

7.Case material:Stainless Steel

8.Output connector:10-32



Piezoelectric accelerometer charge pattern PE-6101PH
