CXCH - 0 1 ELECTRICAL CONNECTORS

Features
*The shell of CXCH-01 is thick than CXCH, provied high mechanical strength
*The plug and socket joint form is welding
*specially designed for terrible environment
*Main technical performance meets the GJB2889
Main technical performance:
1.Physical characteristics
——Shell:High strength aluminum alloy
Shield Coating:Army Green passivation,Chemical nickel plating
Non-Shield Coating:Black positive polarization
——Insulator:Thermoplastic materials
——Seal circle:silicon rubber
——contactor:Copper alloy gold plating or silver plating
——Sinusoidal vibration:   10-2000Hz, 20g
——constant acceleration:     100g
——shock acceleration:      100g
——Useful life:Plug 1000 times
2.Environmental characteristics
——Operating temperature:-55~200℃
——relative humidity::  95%,40℃
——height:30000m
——salt mist-proof:
Chemical nickel plating 96h     stainless steel passivation   1000h
——Anti-humidity,salt mist-proof,mildew-proof,rain-proof,dust-proof

3.Electrical characteristics
——Contact resistance and rated current

Contact Specifications(mm) Contact resistance(mΩ) rated current
(A)
Welding barrel inner diameter(mm)
φ1.0 ≤5 5 Φ1.4
φ1.5 ≤2.5 10 Φ2.0
φ2.0 ≤1.25 20 Φ2.5
Φ3.0 ≤0.75 40 Φ3.0



——voltage resistance, rated voltage

Operating environment  rated voltage V voltage resistance V Isolation resistance
Room temperature 500 ≥1500 ≥5000
humidity and hot 500 ≥1125 ≥100

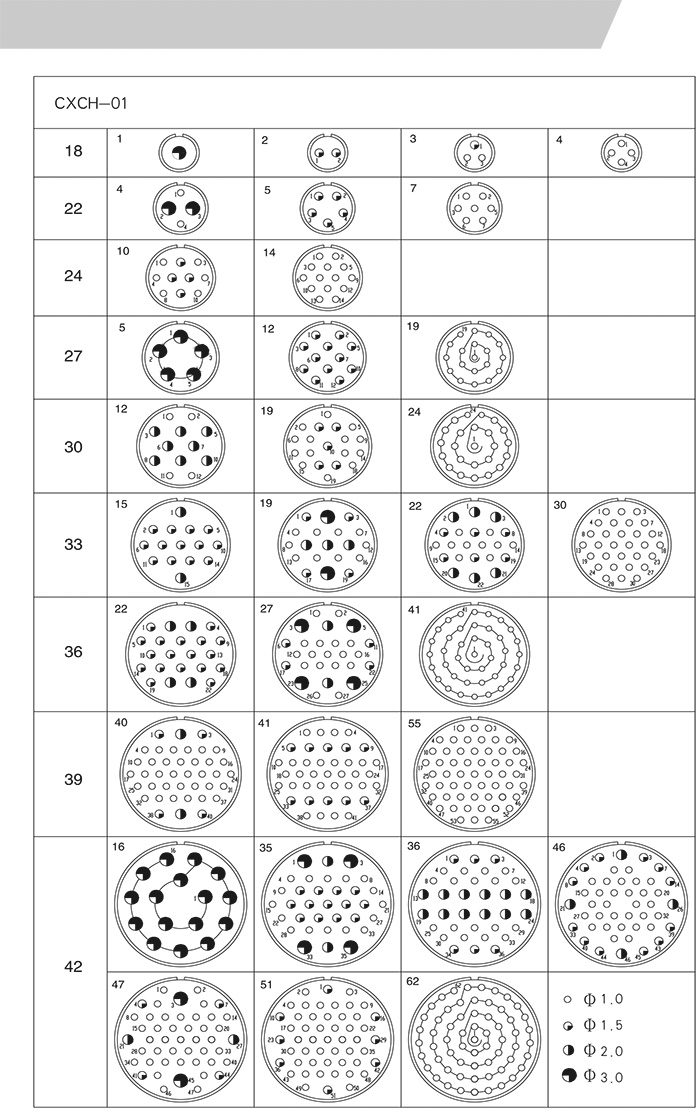

 CXCH - 0 1 electrical connectors
