XC ELECTRICAL CONNECTORS


*Meets the GJB2889 standard
*The end joint form is welding or Compaction
*A buckle fast connection
*It is widely used in environment
Main technical performance:
1.Physical characteristics
1)Ordinary NON-Sealed and sealed through the wall type
——Shell:High strength aluminum alloy
——Shell Coating:
Shield Coating:Army Green passivation,Chemical nickel plating
Non-Shield Coating:Black positive polarization
——Insulator:Thermoplastic materials
——Seal circle:silicon rubber
——contactor:Copper alloy gold plating
——Useful life:Plug 1000 times


2)glass sintered square plate sealed socket
——Shell:carbon steel
——Shell Coating:Electroplating nickel plating
——Insulator:glass
——contactor: Ferroalloy gold plating or nickel plating
——Useful life:Plug 1000 times
2.Electrical characteristics
——Contact resistance and rated current


Specifications
mm
NON-sealed
Contact resistance
Through wall sealed
Contact resistance
square plate sealed
Contact resistance
rated current
A
φ1.0 ≤5mΩ ≤10mΩ ≤15mΩ 5
φ1.5 ≤2.5mΩ ≤5mΩ ≤7.5mΩ 10
Φ2.0 ≤1.25mΩ ≤2.5mΩ ≤3,.75mΩ 20
Φ3.0 ≤0.75mΩ ≤1.5mΩ ≤2.25mΩ 40


——Rated voltage and voltage resistance

Operating environment Sealed electrical connector NON-sealed electrical connector
Rated voltage voltage resistance Rated voltage voltage resistance
room temperature 500V 1500V 500V 1500V
Wet and hot environment 500V 750V 500V 1125V
Low pressure
(1kPa)
150V 300V 250V 300V

——Isolation resistance:MΩ

Application Level standard High temp Wet and hot
Isolation resistance ≥5000 ≥1000 ≥100

3.Environmental characteristics
——Operating temperature:-55~200℃
——relative humidity::  95%,40±2℃
——height:30000m
——Sinusoidal vibration:   10-2000Hz, 20g
——constant acceleration:     100g
——shock acceleration:      100g

4.other characteristics

Anti-humidity,salt mist-proof,mildew-proof,rain-proof,dust-proof

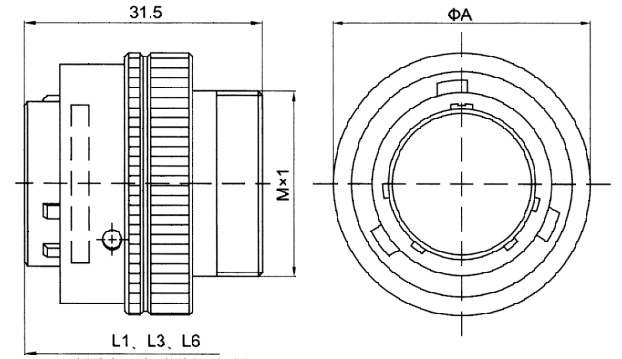

plug
XC electrical connectors

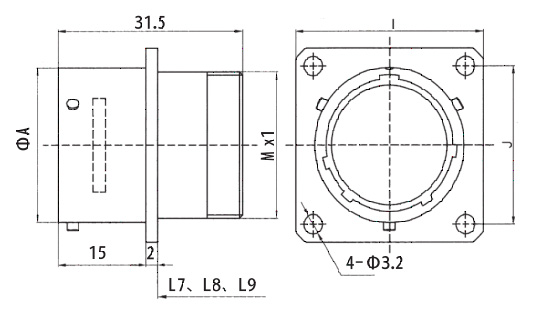

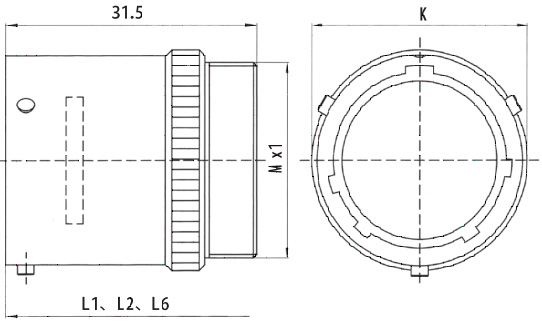

Socket
XC electrical connectorsXC electrical connectors
