Y17 ELECTRICAL CONNECTORS
Features：
*It is widely used in the connection of electrical and electronic equipment
*A buckle fast connection
Main technical performance:
【
Physical characteristics】
--Sinusoidal vibration：10g,10-2000Hz
--shock acceleration: 50g
--crash acceleration： 40g
--Useful life：Plug 500 times
【
Environmental characteristics】
--Operating temperature：-55℃~125℃
--relative humidity: 90 % -95%，Temperature at 40 ± 2℃
--Operating pressure：101.33kPa～4.39KPa
【
Electrical characteristics】
--voltage resistance
height |
Voltage resistance |
| sea level |
1000V |
| 21336m（4.4kPa） |
250V |
--Isolation：≥1000MΩ
| Contact Specifications（mm） |
Contact resistance（mΩ） |
rated current
（A） |
Welding cup inner diameter(mm) |
| Φ1.5 |
≤3 |
10 |
Φ2 |
| Φ2.5 |
≤1.5 |
25 |
Φ3.5 |
| Φ3.5 |
≤1 |
30 |
Φ4.5 |
| Φ5 |
≤0.7 |
75 |
Φ6 |
| Φ7 |
≤0.5 |
100 |
Φ7.5 |
| Φ10 |
≤0.4 |
200 |
Φ13.5 |

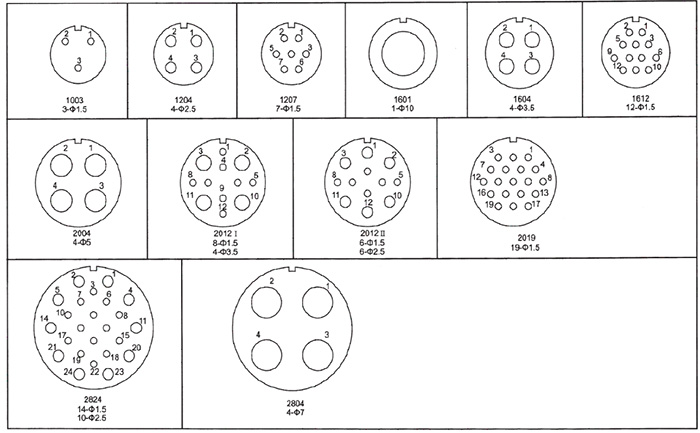

--Contact Specifications

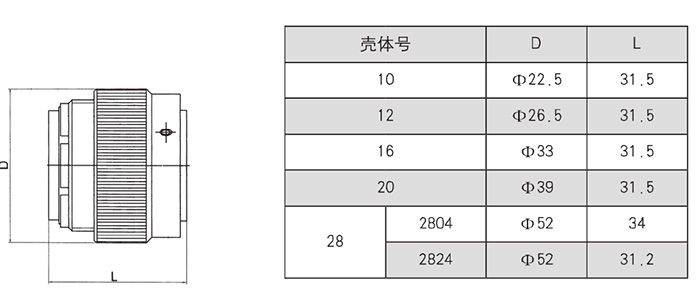

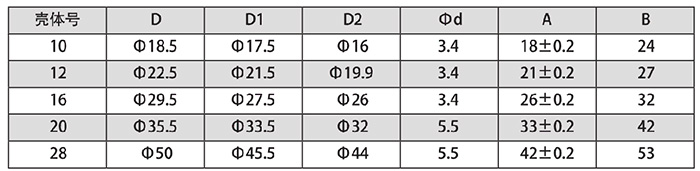

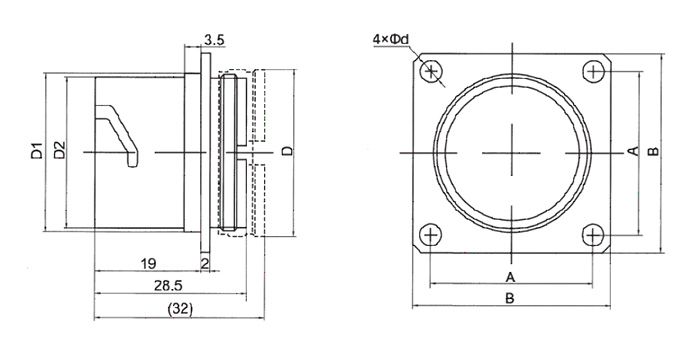

Y17 PLUG AND SOCKET
