YMG ELECTRICAL CONNECTORS
*A buckle fast connection
*Plug, socket for both pins and holes
*The end joint form is welding
*Five keys have blind insertion function
*rain-proof sealed，corrosion-resistant
Main technical performance:
【
Physical characteristics】
--Shell：Stainless steel passivation,Copper Chemical nickel plating,
aluminium Chemical nickel
--Insulator：Thermoplastic materials
--sealed socket：silicon rubber
--contactor：Copper alloy gold plating
--Sinusoidal vibration：20g,10-2000Hz
--acceleration： 100g
--shock acceleration: 100g
--Useful life：Plug 1000 times
【
Environmental characteristics】
--Operating temperature：-55℃~200℃
--relative humidity: 95%，60℃
-- salt mist-proof：stainless steel 1000h；Copper alloy 500h;aluminium alloy 48h
--mildew-proof,rain-proof，dust-proof
【
Electrical characteristics】
Contact resistance and rated current
| Contact Specifications（mm） |
Contact resistance（mΩ） |
rated current
（A） |
Welding barrel inner diameter(mm) |
| φ0.635 |
25 |
1 |
Φ0.7 |
| φ1.0 |
5 |
5 |
Φ1.2 |
| φ1.5 |
2.5 |
10 |
Φ1.8 |
| φ2.0 |
1.25 |
20 |
Φ2.5 |
| Φ3.0 |
0.75 |
40 |
φ3.0 |
Rated voltage and voltage resistance,Isolation resistance
| Operating condition |
Rated voltage V |
voltage resistance V |
Isolation resistance MΩ |
| Room temperature |
500 |
1500 |
≥5000 |
| hot and humid |
500 |
1125 |
≥100 |
Low pressure
(1kPa) |
250 |
300 |
—— |

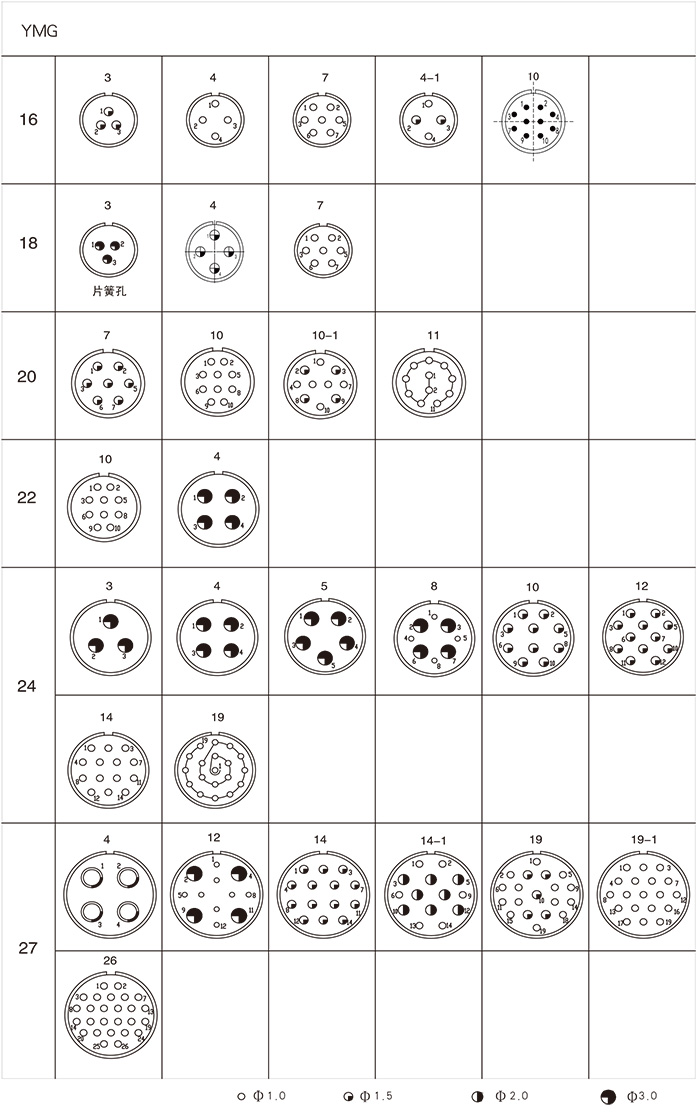

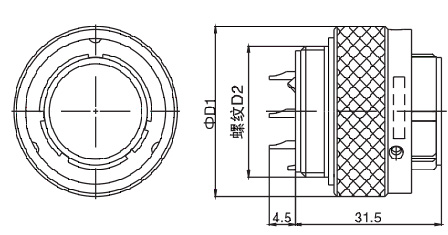

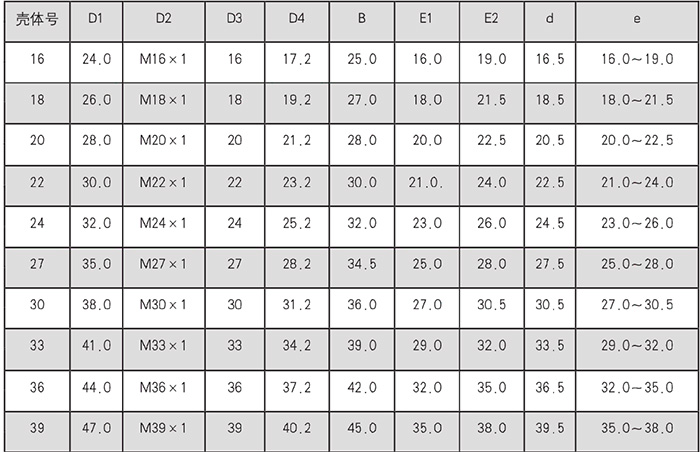

PLUG

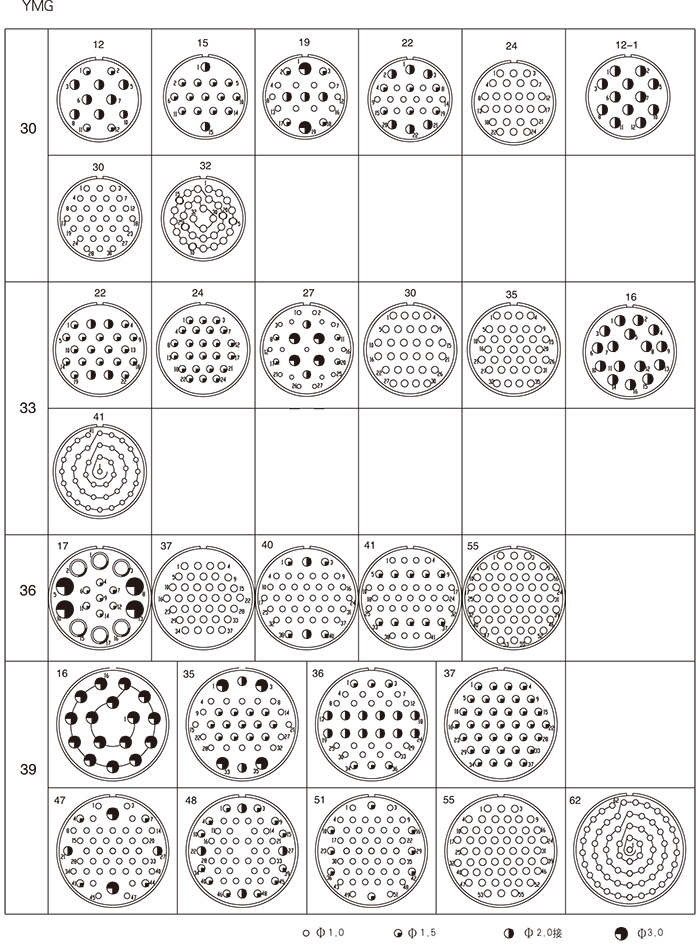

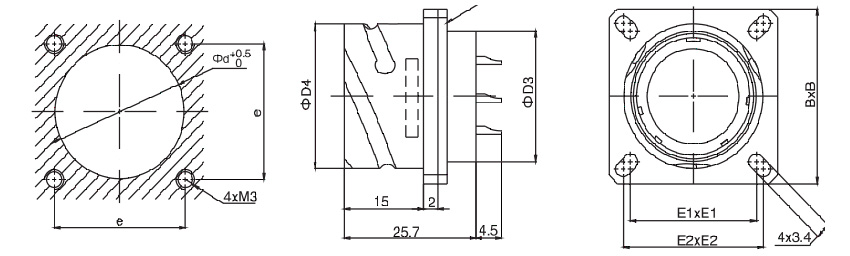

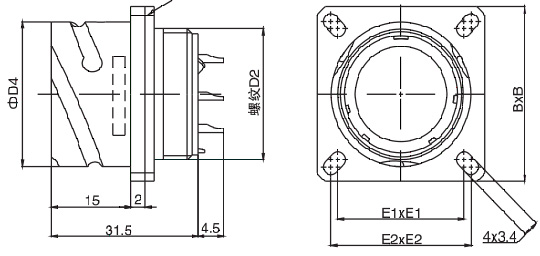

SOCKET
