YMD ELECTRICAL CONNECTORS


Features
*three head thread type connection
*The end joint form is welding
*Plug, socket for both pins and holes
*Five keys have blind insertion function
*rain-proof sealed,corrosion-resistant
*Operating depth :under water 55meters
*high current

Main technical performance:
Physical characteristics
--Shell:Stainless steel passivation,Copper Chemical nickel plating,
aluminium Chemical nickel
--Insulator:Thermoplastic materials
--sealed socket:silicon rubber
--contactor:Copper alloy gold plating
--Sinusoidal vibration:20g,10-2000Hz
--acceleration:   100g
--shock acceleration:     100g
--Useful life:Plug 1000 times
Environmental characteristics
--Operating temperature:-55℃~200℃
--relative humidity: 95%,60℃
--sealed:under water 0~55meters
-- salt mist-proof:stainless steel 1000h;Copper alloy 500h;aluminium alloy 48h
--mildew-proof,rain-proof,dust-proof
Electrical characteristics
Contact resistance and rated current

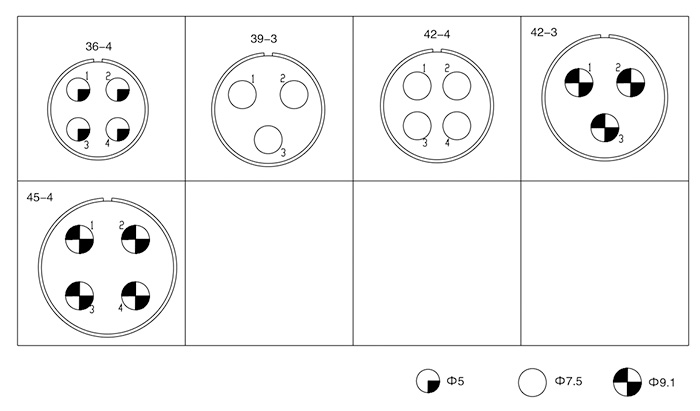

Contact Specifications(mm) Contact resistance(mΩ) rated current
(A)
Welding barrel inner diameter(mm)
Φ5.0 0.75 75 Φ6.5
Φ7.5 0.60 100 Φ8.0
Φ9.1 0.40 150 Φ1.0











Rated voltage and voltage resistance,Isolation resistance

Operating condition Rated voltage V voltage resistance V Isolation resistance MΩ
Room temperature 500 2300 ≥5000
hot and humid 500 750 ≥100
Low pressure
(1kPa)
250 300 ——
Watertight 500 750 ≥100

YMD electrical connectors
