Features：
*high-density，Meets the MIL-DTL-38999KI series

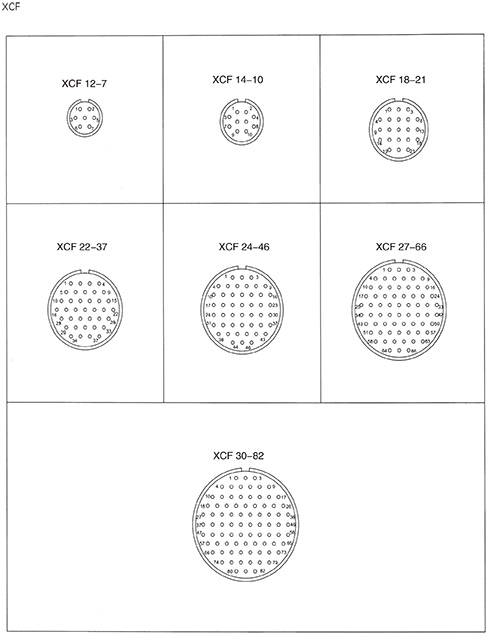

*7～82pins，
*small size and light weight
*A buckle type fast and safe connection
*Five keys have blind insertion function
*The end joint form is welding
*Plug, socket for both pins and holes
Main technical performance:
1.【Physical characteristics】
——Shell：High strength aluminum alloy，stainless steel
——Insulator：Thermoplastic materials
——Seal circle：silicon rubber
——contactor：Copper alloy gold plating
——Sinusoidal vibration：   10-2000Hz, 20g
——constant acceleration：     100g
——shock acceleration:      100g
——Useful life：Plug 1000 times

2.【Electrical characteristics】
——Contact resistance and rated current
——Contact diameter：φ0.635mm
——Contact resistance:≤0.025
——rated current:1A

——voltage resistance， rated voltage，Isolation resistance

Operating environment	rated voltage V	voltage resistance V	Isolation resistance MΩ
Room temperature	≥250	≥1000	≥500
Wet and hot	≥250	≥750	≥100
Low pressure	≥115	≥200	---


3.【Environmental characteristics】
——Operating temperature：-55～200℃
——relative humidity:：  98%，40±2℃
——height：30000m
——Anti-humidity，salt mist-proof，mildew-proof，rain-proof，dust-proof

—— salt mist-proof：Chemical nickel plating，zinc-plating
