XCE ELECTRICAL CONNECTORS

XCE electrical connectors



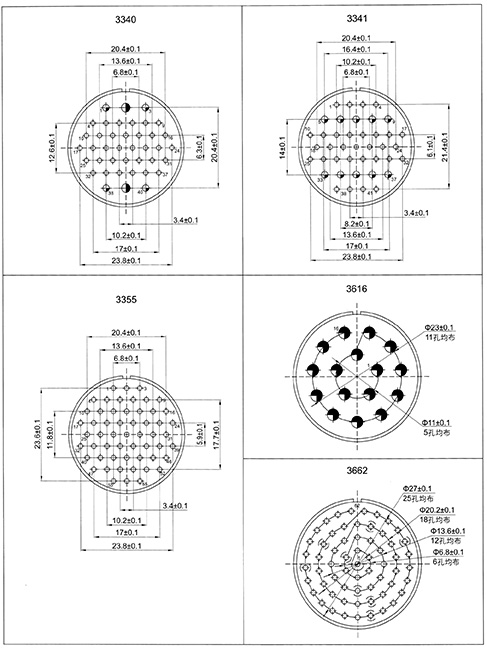

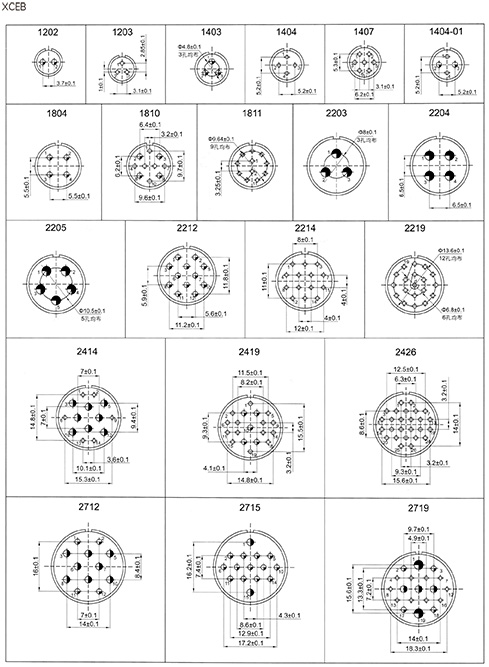

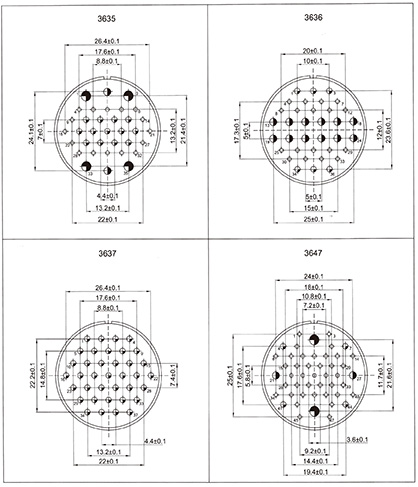

Features
*Meets the MIL-C-26482 seriesⅠ
*Smaller spacing than XC series,same Electrical characteristics
*small size and light weight than XC series(same pin)
*A buckle type fast and safe connection
*Five keys have blind insertion function
*The end joint form is welding
*Plug, socket for both pins and holes

Main technical performance:
1.Physical characteristics
——Shell:High strength aluminum alloy
——Shell Coating:
Shield Coating:Army Green passivation,Chemical nickel plating
Non-Shield Coating:Black positive polarization
——Insulator:Thermoplastic materials
——Seal circle:silicon rubber
——contactor:Copper alloy gold plating
——Useful life:Plug 1000 times


2.Electrical characteristics
——Contact resistance and rated current
Contact Specifications(mm) Contact resistance(mΩ) rated current
(A)
Welding barrel inner diameter(mm)
φ1.0 ≤5 5 Φ1.2
φ1.5 ≤2.5 10 Φ1.8
φ2.0 ≤1.25 20 Φ2.5
Φ3.0 ≤0.75 40 φ3.0













——voltage resistance, rated voltage
Operating environment  rated voltage V voltage resistance V
Room temperature ≥500 ≥1500
Wet and hot ≥500 ≥1125
Low pressure ≥250 ≥300
——Isolation resistance:MΩ

Application Level standard High temp Wet and hot
Isolation resistance ≥5000 ≥1000 ≥100



3.Environmental characteristics
——Operating temperature:-55~200℃
——relative humidity::  95%,40±2℃
——height:30000m
——Sinusoidal vibration:   10-2000Hz, 20g
——constant acceleration:     100g
——shock acceleration:      100g
——Anti-humidity,salt mist-proof,mildew-proof,rain-proof,dust-proof
