XCG ELECTRICAL CONNECTORS

Features

*Meets the GJB2889 standard

*new technology,new materials

*exchangge with XC series

*excellent seal system

*safe and fast connection

Main technical performance:

1.Physical characteristics

——Shell:High strength aluminum alloy

——Shell Coating:

Shield Coating:Army Green passivation,Chemical nickel plating

Non-Shield Coating:Black positive polarization

——Insulator:Thermoplastic materials

——Seal circle:silicon rubber

——contactor:Copper alloy gold plating

——Useful life:Plug 1000 times



2.Electrical characteristics

——Contact resistance and rated current

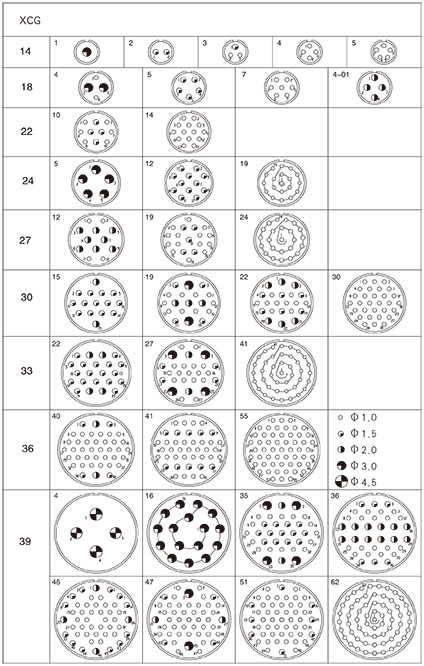

Contact Specificationsmm

Contact resistance

rated current

A

Welding barrel inner diameter(mm)

φ1.0

5

5

Φ1.4

φ1.5

2.5

10

Φ2.0

φ2.0

1.25

20

Φ2.5

Φ3.0

0.75

40

φ3.0

Φ4.5

0.35

65

4.5



















——Isolation resistance:MΩ



Application Level

standard

High temp

Wet and hot

Isolation resistance

5000

1000

100





——voltage resistance, rated voltage

Operating environment

 rated voltage V

voltage resistance V

Room temperature

500

1500

Wet and hot

500

750

Low pressure

150

200







3.Environmental characteristics

——Operating temperature:-55~200℃

——relative humidity::  95%,40±2℃

——height:30000m

——Sinusoidal vibration:   10-2000Hz, 20g

——constant acceleration:     100g

——shock acceleration:      100g

——sealed:35.5kPa

——Anti-humidity,salt mist-proof,mildew-proof,rain-proof,dust-proof
