XCM ELECTRICAL CONNECTORS

XCM electrical connectors



Features
*Meets the GJB2889 standard
*The end joint form is welding
*socke is tighten by screw
*A buckle fast connection
*It is widely used in the connection of electrical and electronic equipment such as navigation, field communications, chariots, public transport power, post and railway command systems.

Physical characteristics
--Shell:High strength aluminium alloy,Chemical nickel plating
--Insulator:Thermoplastic materials


--Sinusoidal vibration:20g,10-2000Hz
--constant acceleration:  100g
--shock acceleration:     100g
--Useful life:Plug 1000 times
Environmental characteristics
--Operating temperature:-55℃~200℃
--relative humidity: 95%,Temperature at 40 ± 2℃
--Anti-humidity,salt mist-proof,mildew-proof,rain-proof,dust-proof
Electrical characteristics
Contact resistance and rated current
Contact Specifications(mm) Contact resistance(mΩ) rated current
(A)
Welding cup inner diameter(mm)
φ1.0 5 5 Φ1.4
φ1.5 2.5 10 Φ2.0
Φ2.0 1.25 20 Φ2.5
Φ3.0 0.75 40 Φ3.0
Φ4.5 0.35 65 Φ4.5
















——Rated voltage and voltage resistance,Isolation resistance:
Operating environment Rated voltage voltage resistance Isolation resistance
room temperature 500V 1500V ≥5000MΩ
Wet and hot environment 500V 1125V ≥20Ω
Low  pressure
(1kPa)
150 300 --

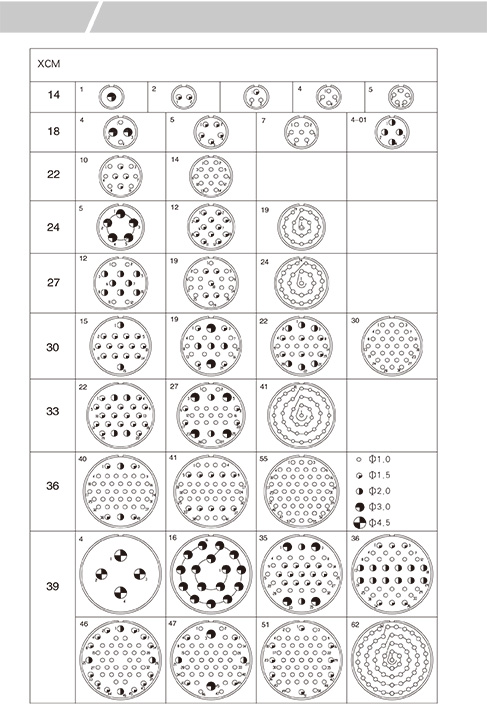

XCM electrical connectors
